Electric tin suction device

$35.00 $0.00
Quickly remove the larger solder joints on the board and the solder joints on the bottom of the pins.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites
  • Electric tin suction device
  • Electric tin suction device
1/1
  • Electric tin suction device
  • Electric tin suction device
  • Description
Electric tin suction device

When repairing circuit boards, it is common to encounter large tin spots or bottoms of pins that are difficult to remove with a soldering iron.
Electric tin suckers are designed for this purpose. It utilizes the powerful suction of a vacuum pump to adsorb and remove tin. At the same time as the tin suction, the tin suction nozzle will heat the tin point to melt the tin, so that it is instantly removed by the vacuum pump.

Product parameters
Tin can size Diameter 42MM
Heating power 30W
Electromagnetic power 350W (Instant)
Operating Voltage 220V 50Hz
length 245MM
Weight 500g

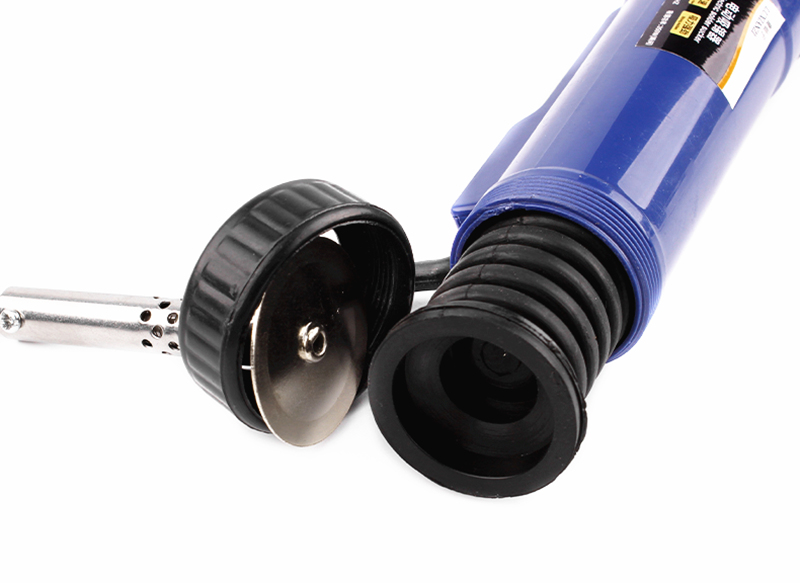

①Power cord
②Swivel lid of tin can
③Stainless steel anti-scalding shell
④Heating nozzle
⑤ Tin can
⑥Suction tin button


The high temperature resistant vacuum skin cavity bracket is used to effectively prevent the intrusion of high temperature tin slag, and the built-in all-copper solenoid valve is used.



Guide:
1: Turn on the power and preheat for about 3 minutes.
2: Align the front end of the nozzle with the tin point to be removed, and melt the solder.
3: Press and hold the tin suction button to suck the tin into the tin can.
4: Release the tin suction button and spray the tin slag
