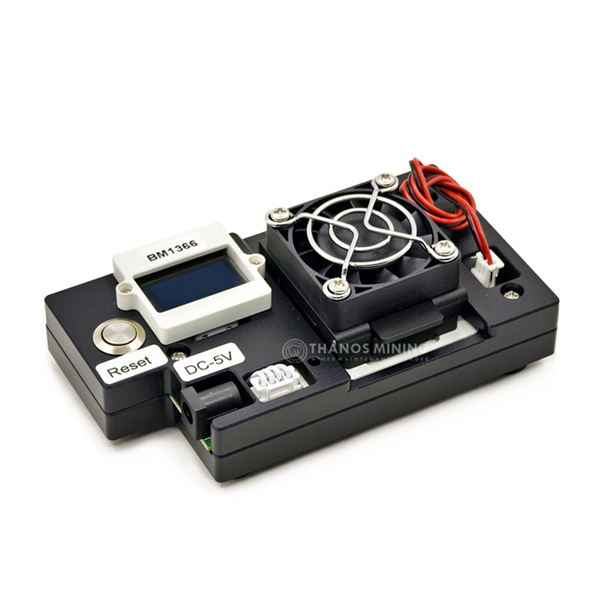

BM1366 Series Chip Tester

$309.00 $0.00
Currently supported ASIC chip models:
BM1366AI, BM1366AG, BM1366BP, BM1366BS
Test fixture for BM1366 BM1366BS BM1366AG BM1366AL ASIC chip
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites
  • BM1366 Series ASIC Chip Tester
  • BM1366 Series ASIC Chip Tester
1/1
  • BM1366 Series ASIC Chip Tester
  • BM1366 Series ASIC Chip Tester
  • Description
BM1366 Series Chip Tester

Currently supported ASIC chip models:
BM1366AL, BM1366AG, BM1366BP, BM1366BS
The tester can complete the parameter detection and yield test of ASIC chips in a short time.
It is mainly used by the miner maintenance department to detect disassembled second-hand chips.
Operation method:
① Connect the power adapter and make sure the power indicator is on
② Connect the power supply to the tester and wait for a few seconds. The tester will automatically turn on, the screen will light up, and the fan will start.
③ Put the ASIC chip into the tester chip base in the correct direction and close the lid.
④ Press the test button to start the test. A healthy chip will prompt "pass"
Important tips:
After the test is completed, please remove the chip as soon as possible.
ASIC chips are not allowed to be placed inside the tester for a long time.
After the test is completed, the chip is still powered on.
To avoid damaging the chip and the tester, please be sure to comply!

BM1366 BM1368 Series ASIC Chip Tester User Manual

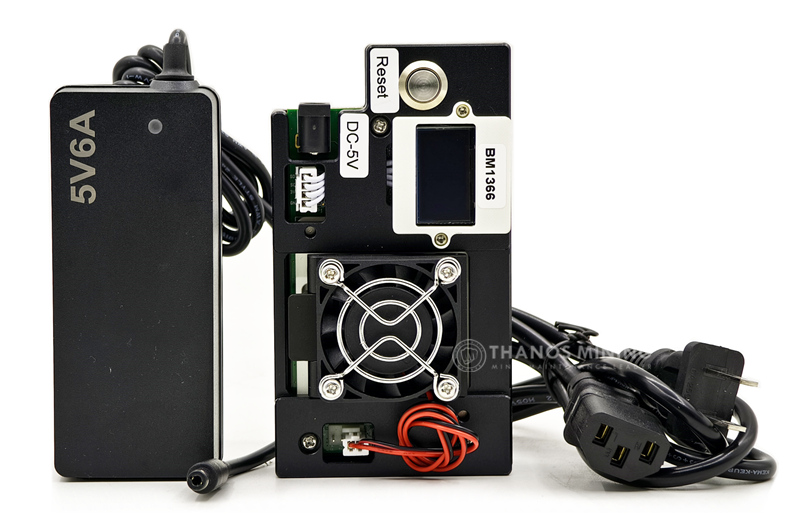

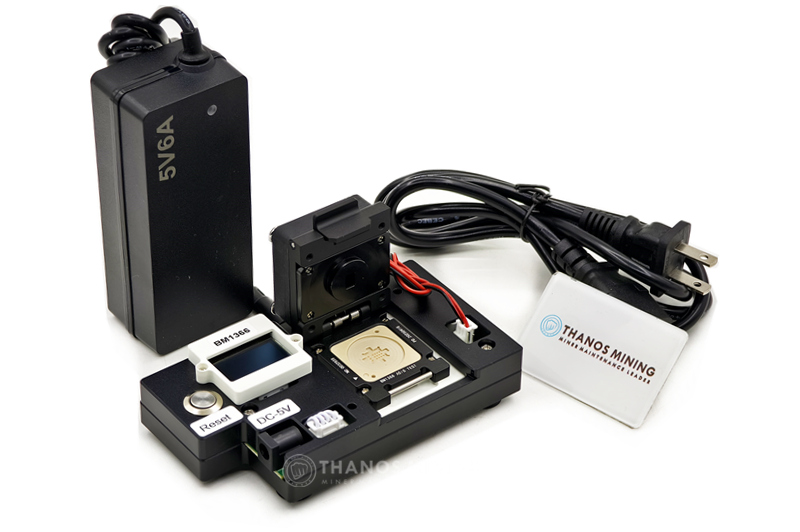

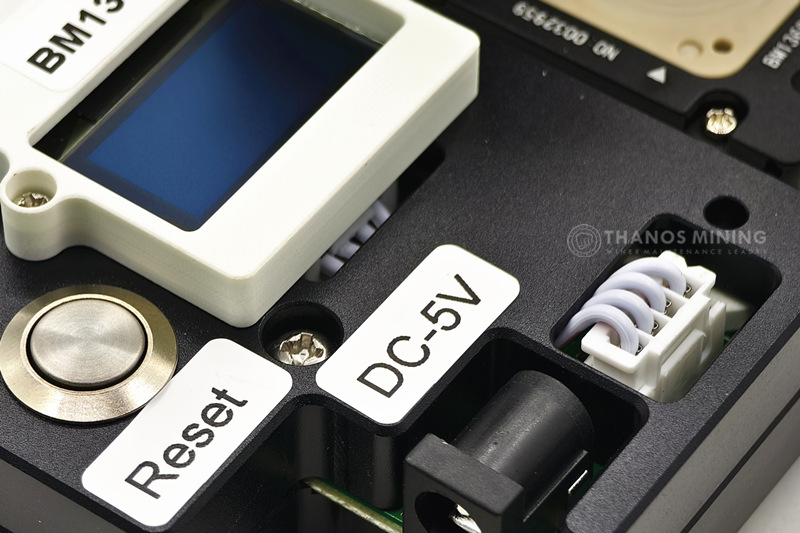

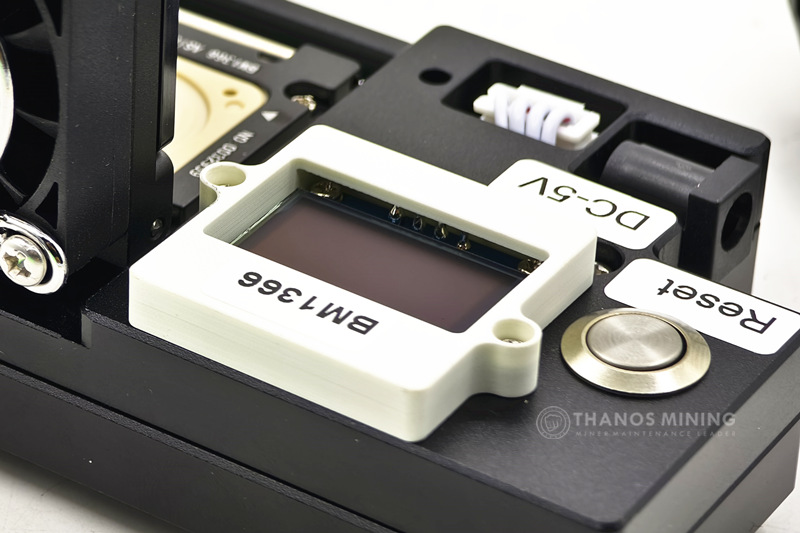

Details display:







Tips:
The new version of ASIC chip tester has its shell color updated to black, and the button layout is the same as the old version.

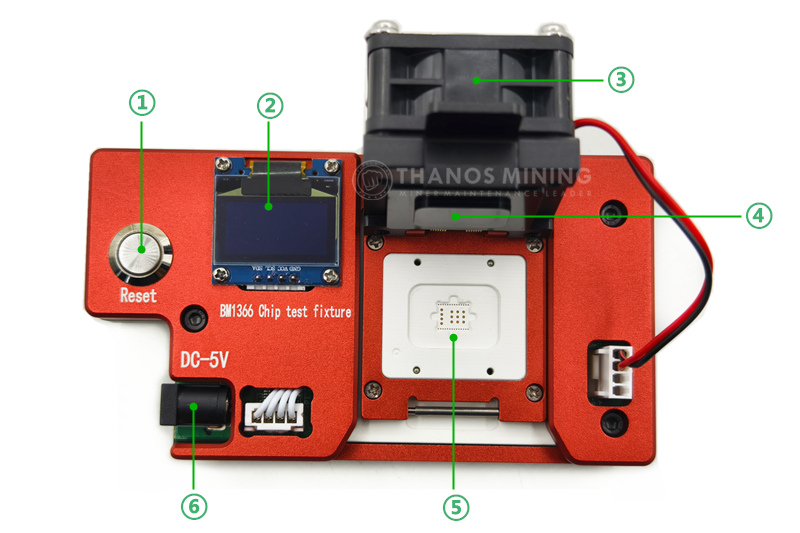

Schematic diagram of control parts:
①Test button
②ELD display
③Cooling fan
④Fixed cover

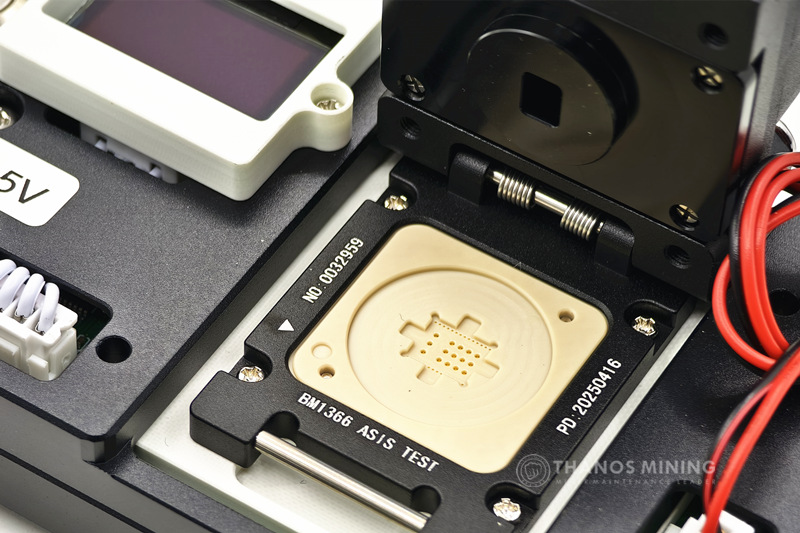

⑤ASIC foot base
⑥Power supply port


The ASIC chip must be placed in the correct direction, otherwise it may be damaged!
See the diagram:


List:
BM1366ASIC series tester host*1
Power adapter*1
Power cord*1
